As photovoltaic power stations continue to gain popularity, inverters act as core components in solar power systems. Operating under continuous high-load conditions, accumulated heat can directly affect equipment stability and service life. Many PV project engineers and procurement teams face a common challenge during selection: how to match heat sink power rating for PV inverters.
Power matching is not simply selecting a heat sink based on the inverter’s rated power. It requires comprehensive evaluation of heat loss, working environment and cooling method. Jingshengxin (Science and Technology) Shenzhen Co., Ltd. has rich practical experience in PV thermal solutions. Below we share practical ideas for power matching.
First, distinguish between rated power and heat loss power — this is the most common pitfall. Many people select heat sinks directly using the inverter’s nominal rated power, which is inaccurate. Energy conversion inside inverters generates losses, and the lost energy turns into heat. For example, a 100kW PV inverter with 98.5% conversion efficiency produces around 1.5kW of heat. Thermal design should be based on this heat loss value instead of the total rated power. A undersized heat sink may trigger high-temperature alarms during long-time full-load operation.
Second, working conditions are essential for power matching. Outdoor PV inverters operate in diverse environments: high-temperature exposure in southern regions, dusty conditions in northwest areas, and low air pressure on plateaus all change cooling performance. An identical inverter requires a different heat sink specification at 45℃ outdoor temperature versus 25℃ indoor conditions. Thin air at high altitudes reduces convective heat transfer, so heat sink area needs to be increased for the same power level. Confirm maximum ambient temperature and mounting type, whether cabinet-mounted or open-frame installation, before finalizing a solution.

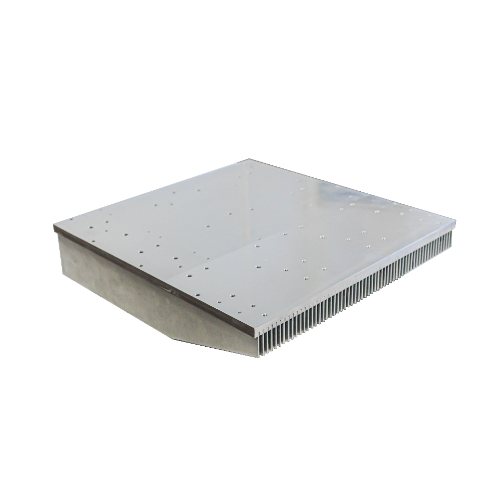

Cooling type also determines the heat load capacity of the heat sink. Natural convection and forced air cooling are two mainstream solutions for PV inverters. Natural convection features simple structure and low maintenance, suitable for medium and small power inverters. Forced air cooling with fans delivers higher heat transfer for larger heat loads, while fan lifespan and dust protection need to be considered. Jingshengxin (Science and Technology) Shenzhen Co., Ltd. provides PV inverter heat sink solutions such as extruded and fin-stack types according to inverter power and site conditions. Thermal simulation is available in the early stage to predict cooling performance.
A reasonable safety margin should be reserved after basic parameter calculation. PV inverters encounter short-term overload and power fluctuations caused by changing sunlight. Design cannot be made exactly at the limit of heat loss. Proper margin helps withstand peak heat impact. Thermal contact resistance between heat sinks and power devices also needs control. Surface flatness and thermal interface material selection affect heat conduction. Poor contact will lead to local overheating even if the heat sink size matches the power requirement.
In summary, matching PV inverter heat sink power relies on calculating heat loss, combined with ambient temperature, cooling mode and overload conditions. Thermal simulation in the design phase verifies solution performance and reduces rework during prototype testing.
