During the R&D phase of industrial power supplies, energy storage equipment, photovoltaic inverters and other high-power devices, the selection of thermal solutions directly affects the stability of complete equipment and project delivery schedules. Many equipment R&D engineers and purchasing managers often focus on two core questions: how to choose high power heat sinks, and the heat sink molding lead time that matters for project scheduling.
Under high-power operating conditions, heat output is substantial and working environments can be complex. Standard profile heat sinks often fail to deliver stable long-term heat dissipation. Selection cannot rely solely on external dimensions. It requires comprehensive evaluation based on equipment heat loss, allowable temperature rise, installation space and operating environment.
First, calculate thermal load parameters. Clarify the maximum power consumption of equipment and target temperature rise requirements, which form the foundation for selecting high power heat sinks. Incorrect heat estimation may cause overheating and frequency reduction even for oversized heat sinks. Next, distinguish different thermal solutions: extruded profiles, skived fin, brazed and liquid-cooled heat sinks each have suitable application scenarios. For air-cooled applications, prioritize fin density and effective heat dissipation area. For dusty outdoor environments, avoid ultra-dense fins to prevent dust buildup and degradation of long-term thermal performance.

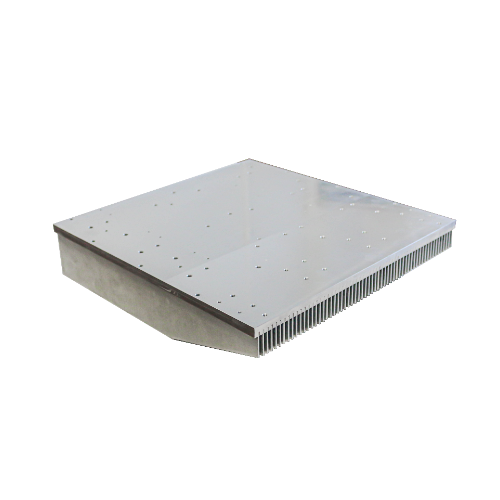

Material and surface treatment also need consideration. Aluminum alloy is the mainstream material for high power heat sinks with reliable thermal conductivity and mature processing technology. Anodizing improves corrosion resistance, suitable for outdoor and humid working conditions. Check mounting structure and flatness of contact surfaces. Thermal interface gaskets are recommended to reduce thermal resistance and maximize heat dissipation efficiency.
When standard models cannot match your equipment structure after confirming the thermal solution, custom mold development will be required. At this stage, heat sink molding lead time becomes a key factor for your project. Many clients worry long mold development will delay new product launch.
For conventional extruded aluminum heat sink molds, the full workflow includes mold design, machining, trial molding and sample confirmation. Simple profile molds have relatively short lead times, while complex special-shaped cross-sections and high-density multi-fin molds require extra time for manufacturing and repeated trial verification. Time should also be reserved for sample testing and revisions. If your project timeline is tight, evaluate existing standard heat sink options first to skip mold development and shorten overall delivery.
At the selection and mold development stage, communicate drawings, thermal simulation reports and sample testing requirements with your heat sink manufacturer in advance. Reliable thermal suppliers can provide preliminary thermal simulation to verify solution feasibility, reduce mold rework and manage heat sink molding lead time. Jingshengxin (Science and Technology) Shenzhen Co., Ltd. has rich experience in R&D and manufacturing of high-power thermal products. We support customers with solution evaluation, sample prototyping and customized production, delivering one-stop thermal solutions for high-power equipment.
Proper assessment of selection logic and mold cycle in early project stages helps you select stable, suitable high power heat sinks and reasonably arrange project timelines to avoid schedule delays.
