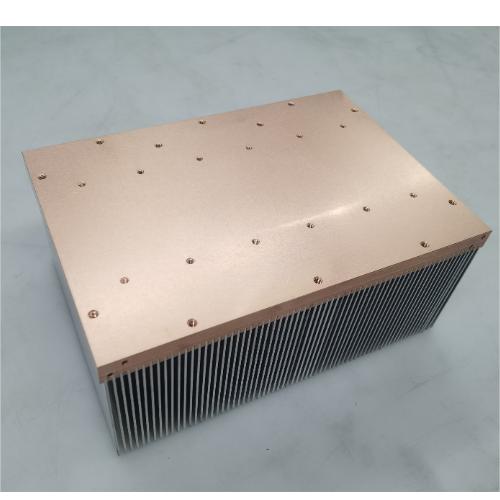

In the heat sink design and selection phase, many engineers ask the same question: Does heat sink base plate thickness greatly affect thermal performance? As the thermal bridge between heat sources and fins, the base plate acts as a core component for heat transfer. Improper base plate thickness will alter the overall heat transfer path. Even with well-designed fins, the overall heat dissipation performance may fail to meet expectations.
Many procurement and R&D teams tend to fall into two common misconceptions. Some believe a thicker base plate always delivers better thermal conductivity. Others assume the base plate only needs to support power components, so thinner plates are acceptable to cut material costs. In fact, base plate thickness is not simply better when thicker or thinner. Selection should be evaluated based on power rating, thermal resistance requirements and component layout.
Heat transfers from power chips to the base plate surface, spreads across the plate, and then conducts to fins for convective cooling. If the base plate is too thin, heat cannot spread horizontally quickly enough, resulting in localized hot spots and uneven surface temperature distribution. Local high temperatures may affect the operating stability of electronic components. This issue stands out for high-power devices, where concentrated heat sources cannot be dispersed and thermal resistance rises accordingly.
However, continuously increasing the base plate thickness does not bring continuous performance gains. Once the thickness exceeds a critical value, further thickening brings only marginal thermal improvement. Extra thickness extends the heat conduction path, increases the overall weight of the heat sink, and raises material and processing costs. The heavier unit also creates higher requirements for equipment mounting structures.
Extruded heat sinks, skived heat sinks and water-cooled base plates each have their typical base plate thickness ranges. For low-power applications with large heat source areas, thinner base plates can be considered. For high-power scenarios with concentrated point heat sources, moderately thicker base plates help with horizontal heat spreading. In the early project stage, thermal simulation can be used to compare temperature distribution and thermal resistance data under different thickness options, balancing cost and thermal performance.
Jingshengxin Technology (Shenzhen) Co., Ltd supports custom heat sink projects. Our team recommends suitable base plate materials and thickness options according to customer power parameters, installation space and ambient temperature. We offer aluminum and copper base plate fabrication, and use thermal simulation to predict thermal behavior and avoid overheating issues during prototype testing.
Heat sink base plate design is essentially a trade-off among heat spreading capability, weight and cost. Instead of relying solely on experience to determine dimensions, evaluate based on heat source distribution and power level to select a suitable solution and maintain stable long-term operation of electronic devices.
